1953-62 Arrow LIGHTS, LAMPS, LENS & RELATED Arrow Interior: Courtesy Lights

Interior: Courtesy Lights

Diagrams:

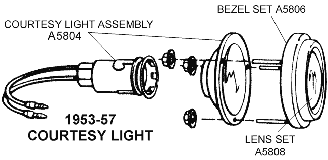

1953-57 Courtesy Light Diagram Thumbnail
1953-57 Courtesy Light
(click to enlarge)

1953-62 Courtesy Light Switch Area Diagram Thumbnail
1953-62 Courtesy Light Switch Area
(click to enlarge)

Courtesy Light Assembly Diagram Thumbnail
Courtesy Light Assembly
(click to enlarge)


A5804A580453-57BASE & SOCKET - courtesy light assembly, (base, harness, bezel, and lens (pr)134.95
A5806A580653-57BEZEL - courtesy light, w/lens (pr)98.45
 A601755-62BULB - courtesy light1.95
A4018A401853-62GASKET SET - courtesy light switches (pr)3.35
A5810A581058-62HOUSING, BEZEL & LENS - courtesy light59.95
A5816A581658-62LENS & GASKET - courtesy light13.10
A5808A580856-57LENS - courtesy light (pr)8.00
A5814A581458-62LIGHT ASSEMBLY - courtesy, w/socket and wire19.25
A1907A190758-62MOUNT KIT - courtesy light, screws & "J" nuts (4 pc)3.25
A6071A607153-62SCREW SET - courtesy light switches, (4 pc)2.60
A9957A995758-62SOCKET - courtesy light, w/wires25.25
A5832A583253-62SWITCH KIT - courtesy lights, w/gaskets & screws (pr)42.95
